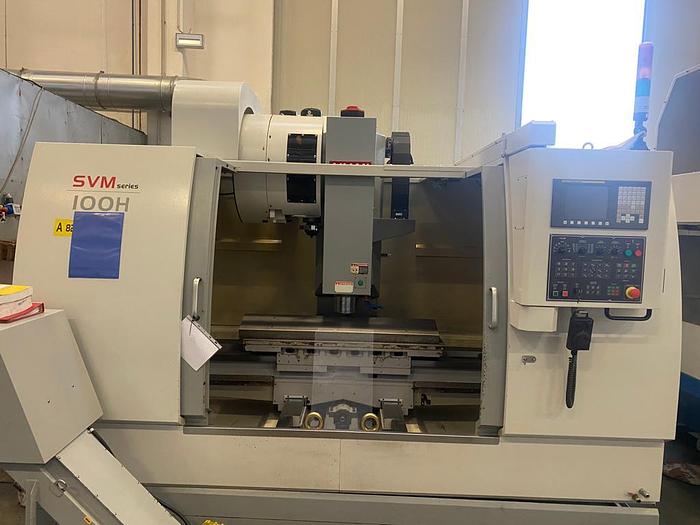

Vertical Machining Center

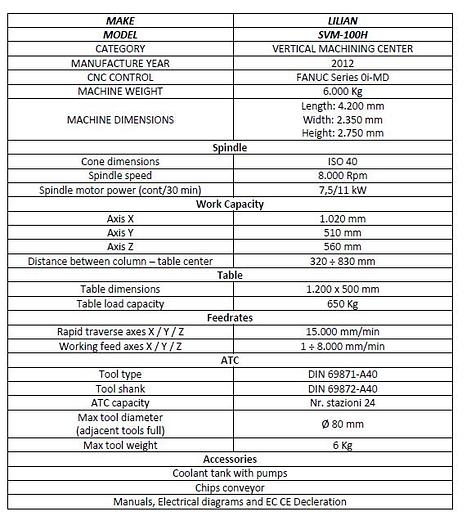

Specifications

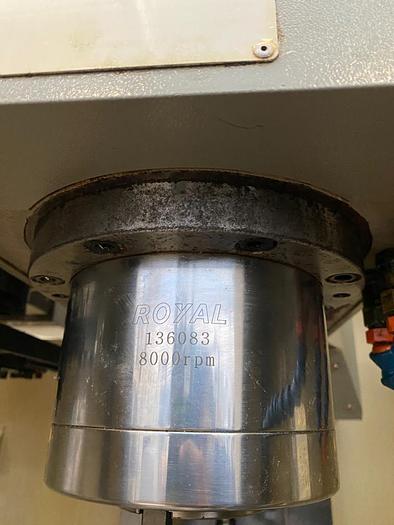

Spindle

Cone dimensions : ISO 40

Spindle speed : 8 Rpm

Spindle motor power : 7.5/11 kw

Work capacity

Axis X : 1.020mm

Axis Y : 510 mm

Axis Z : 560 mm

Distance between column-table center: 320: - 830 mm

Table

Table dimensions : 1.200x500 mm

Table load capacity : 650 kg

Feed rates

Rapid traverse axes X/Y/Z : 15mm/min

Working feed axes X/Y/Z : 1: -8 mm/min

ATC

Tool type : DIN 69871-A40

Tool shank : DIN 69872-A40

ATC capacity : Nr. Stazione 24

Max tool diameter : ø 80 mm

(adjacent tools full)

Max tool weight : 6 kg

Accessories

Coolant tank with pumps

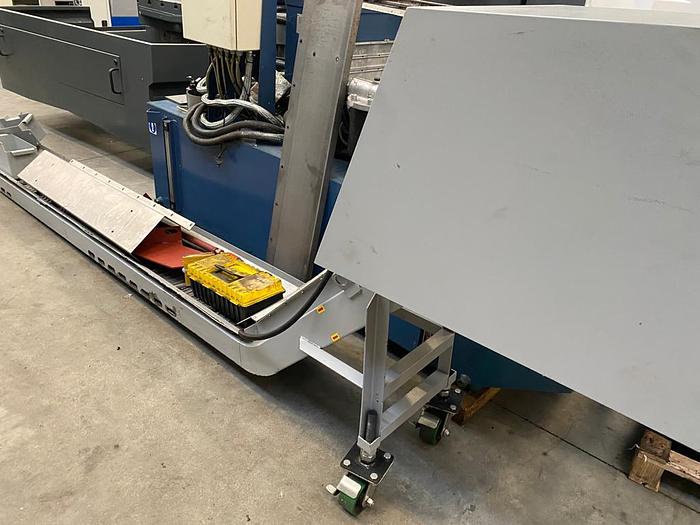

Chips conveyor

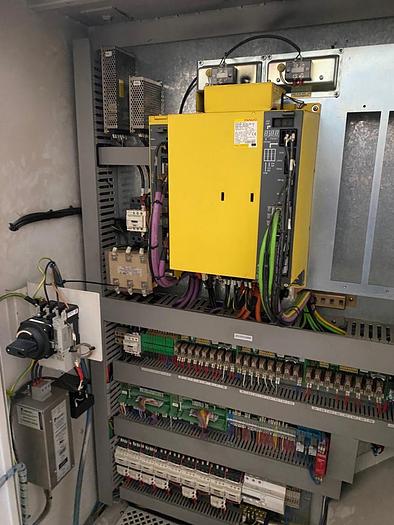

Manuals, Electrical diagrams and EC CE Declaration
